Bipedal Robot RL Simulation on Jetson Orin Nano

Training a two-legged robot to walk using PPO and the Genesis physics simulator, running entirely on the Jetson Orin Nano.

1. Clone the repo

$ git clone git@github.com:rylanpeng/jetson-orin-nano-two-leg-robot-simulation.git
$ cd jetson-orin-nano-two-leg-robot-simulation

2. Install Python dependencies

$ uv sync

3. Patch Genesis for Jetson

Run this once after every uv sync:

$ bash patch_genesis.sh

Expected output:

  [+] Added 'import re' to .venv/lib/python3.10/site-packages/genesis/utils/misc.py
  [+] Patched version parsing in .venv/lib/python3.10/site-packages/genesis/utils/misc.py
  [+] Patched version parsing in .venv/lib/python3.10/site-packages/genesis/__init__.py
Done.

If you see [=] Already patched or no match, the patch was already applied, nothing to do.

tuple(map(int, torch.__version__.replace("+", ".").split(".")[:3]))

tuple(int(x) for x in re.split(r"[^0-9]+", torch.__version__) if x)[:3]

4. Train

Default training runs 500 iterations and saves checkpoints every 100.

$ uv run python -m two_leg_robot.train

Logs and checkpoints are saved under logs/exp_<timestamp>/. A logs/latest symlink always points to the most recent run.

You can customize the run:

# Custom log prefix and longer run
$ uv run python -m two_leg_robot.train --log_dir my_experiment --iterations 1000

The console prints a table after each iteration:

################################################################################
                           Learning iteration 200/200

                            Total steps: 3276800
                       Steps per second: 10407
                        Collection time: 0.787s
                          Learning time: 0.787s
                        Mean value loss: 0.0051
                    Mean surrogate loss: -0.0071
                      Mean entropy loss: 10.2962
                            Mean reward: 14.21
                    Mean episode length: 931.53
                  Mean action noise std: 0.88
      Mean episode rew_tracking_lin_vel: 0.8296
      Mean episode rew_tracking_ang_vel: 0.1431
             Mean episode rew_lin_vel_z: -0.0481
           Mean episode rew_base_height: -0.0091
           Mean episode rew_action_rate: -0.1210
    Mean episode rew_similar_to_default: -0.0662
--------------------------------------------------------------------------------
                         Iteration time: 1.57s
                           Time elapsed: 00:05:29

Monitor training in TensorBoard:

$ uv run tensorboard --logdir logs

Open http://localhost:6006 in a browser. The Train/mean_reward curve should trend upward as the robot learns to follow velocity commands.

5. Evaluate

Evaluation loads the most recent checkpoint from logs/latest:

$ uv run python -m two_leg_robot.eval

To load a specific run and checkpoint:

$ uv run python -m two_leg_robot.eval --log_dir exp_2026-04-03_01-15-57 --model_id 500

The viewer opens and shows the robot walking under randomly sampled velocity commands.

6. Teleoperate

Drive the robot manually using the keyboard:

$ uv run python -m two_leg_robot.eval_teleop

Controls:

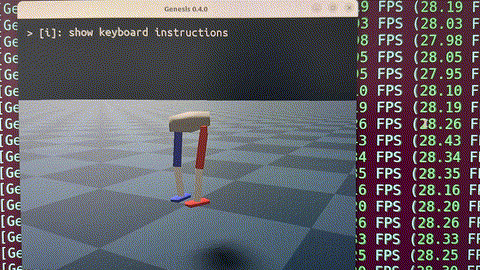

Result

TensorBoard

All training metrics are logged under logs/<run_name>/ and viewable in TensorBoard:

$ uv run tensorboard --logdir logs

Key panels to watch:

• Train/mean_reward: the main signal. Should trend up. If it plateaus early, the reward scales or network capacity may need tuning.
• Loss/surrogate: the PPO policy gradient loss. Should decrease and stabilize.
• Loss/learning_rate: the adaptive KL controller adjusts this automatically. Large oscillations suggest unstable training.
• Policy/mean_noise_std: exploration level. Should decrease gradually as the policy converges.
• Episode/rew_*: per-reward-term breakdowns. Useful for diagnosing which terms are dominating or conflicting.
